How to Bypass EcoFlow Battery Costs: DIY Expansion Port Modification

Stop overpaying for proprietary battery expansion packs. By reverse-engineering the communication pins on EcoFlow Delta series power stations, you can integrate high-capacity LiFePO4 batteries directly into the system. This modification tricks the unit into recognizing external power sources, allowing for massive capacity upgrades at a fraction of the retail cost. It’s a game changer.

Step-by-Step Assembly & Testing

Initial Voltage Verification

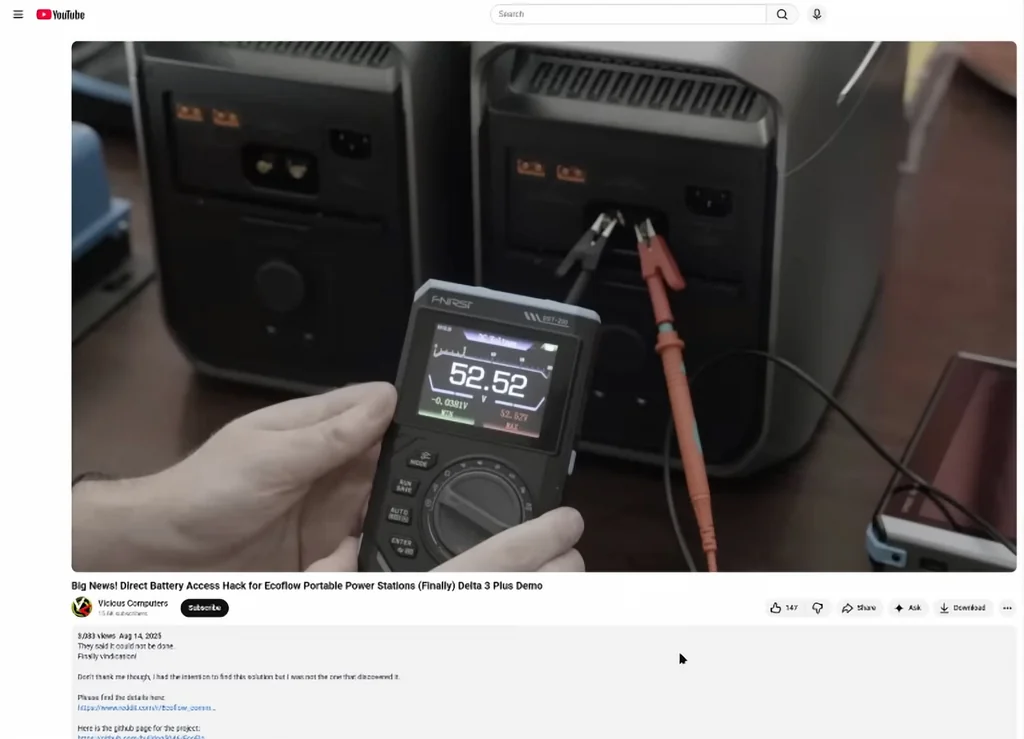

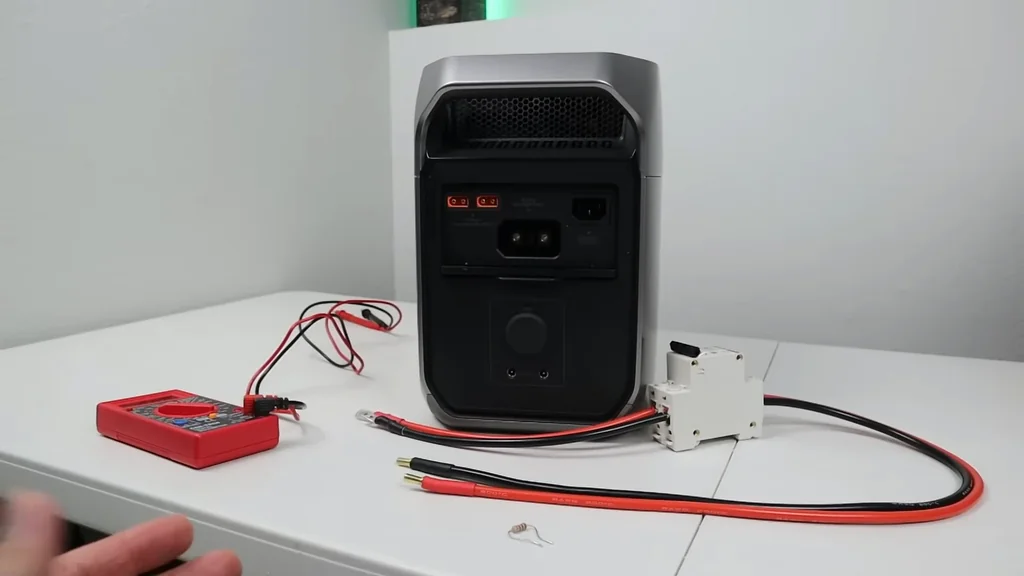

Start by checking your base voltage. Use a digital multimeter to confirm the output levels of your battery system before making any physical connections. It's critical to ensure the voltage matches the EcoFlow input requirements. Don't skip this. A simple measurement prevents catastrophic failures later on. Always verify polarity twice.

Confirming 53.4V System Levels

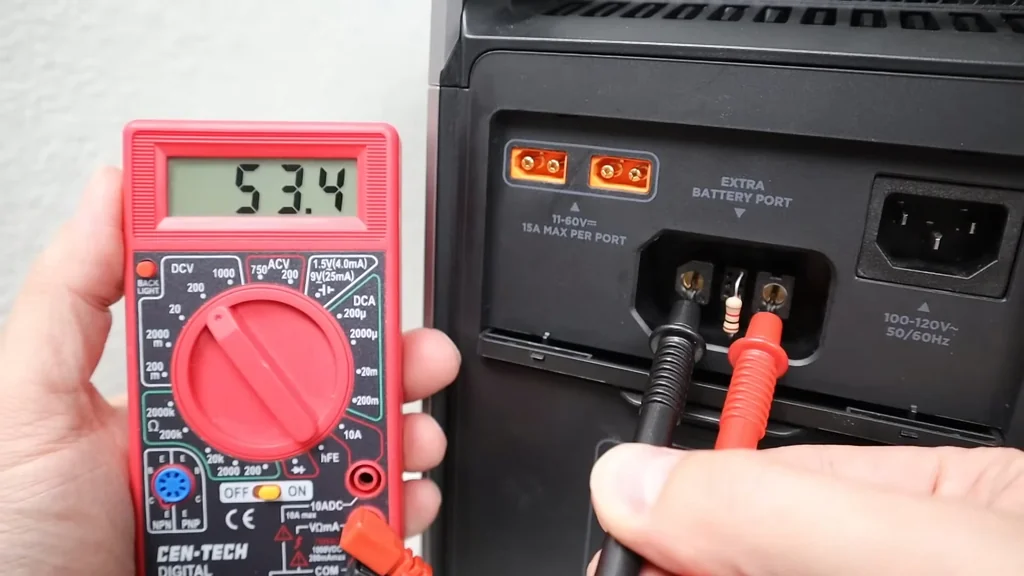

The multimeter shows a steady 53.4V reading. This is the sweet spot for most 16S LiFePO4 setups. You need to be precise here. If your voltage is significantly higher or lower, the power station might reject the connection. Precision matters. Keep your probes steady and watch the display closely.

EcoFlow Model Selection

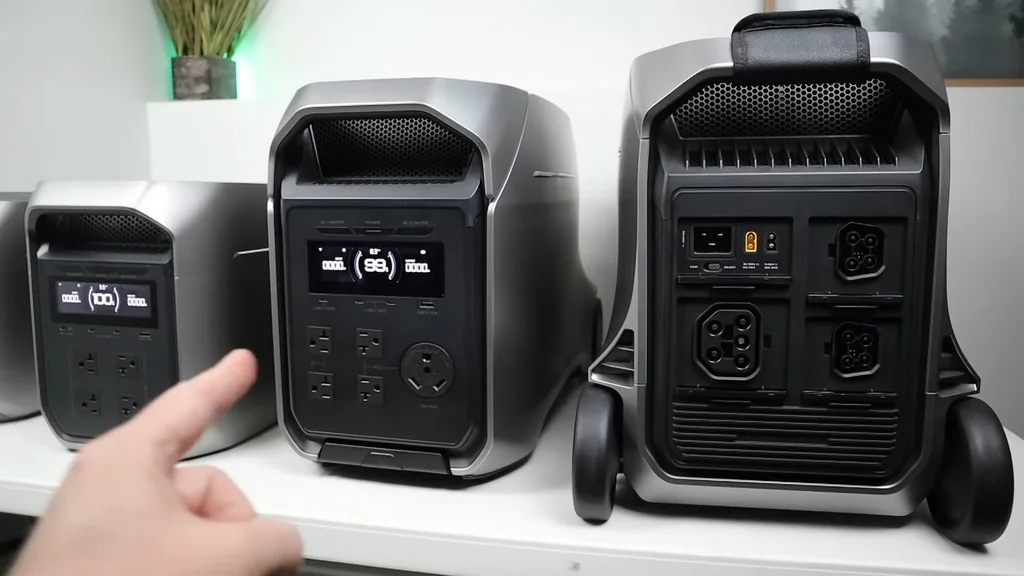

We have three different EcoFlow units lined up for testing. Each model has unique pinout requirements for the expansion port. You cannot treat them all the same. Check the specific pin configuration for your unit before proceeding. It's a specific process. Mistakes here will lead to no communication.

Understanding the LiFePO4 Integration

The core concept involves tricking the EcoFlow BMS into seeing an external battery. By bridging specific pins with a 1k Ohm resistor, you simulate the presence of an official expansion pack. It's clever. This bypasses the software lockout that prevents third-party batteries from charging the unit. The logic is sound. This setup allows the power station to draw current from the external pack as if it were a native component. You're effectively extending the runtime without the premium price tag. It's solid.

Wiring the DC Breaker and Connectors

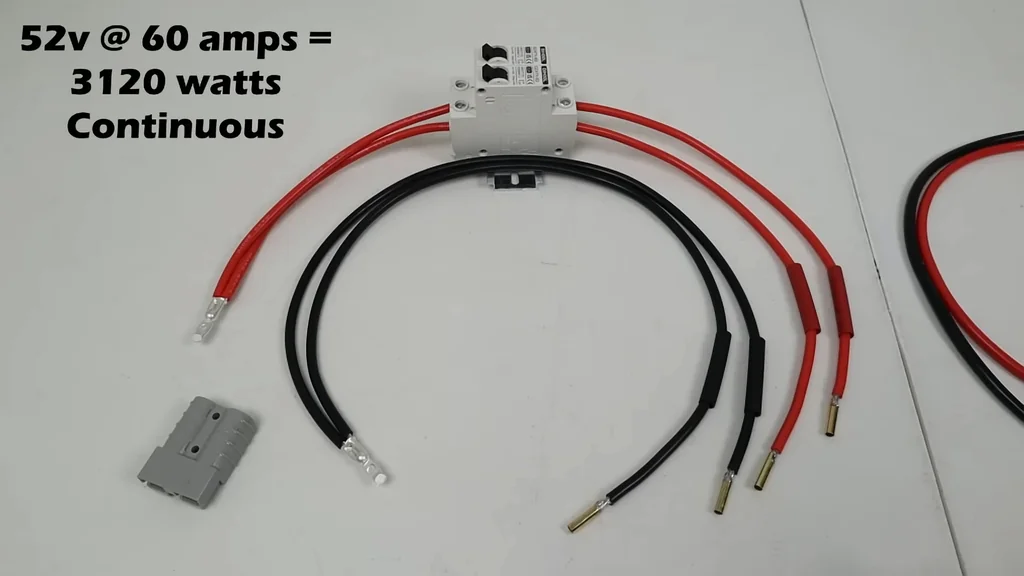

Safety is non-negotiable when dealing with high-current DC. Install a 40-amp DC breaker between the battery and the power station to protect against shorts. Use high-quality Anderson connectors for the main power path to ensure low resistance. It's vital. Secure all connections with heat shrink tubing to prevent an accidental contact. The build quality determines reliability. Don't cut corners on wiring gauge. Use thick copper cables to handle the amperage without overheating. It's safe.

Testing the Circuit Continuity

Before plugging into the EcoFlow, verify the circuit path one last time. Use your multimeter to check for continuity across the breaker. It's clear. Ensure no stray wires are touching the pins on the expansion port. A short here will fry the port. Take your time.

Identifying Expansion Port Pinouts

The rear panels house the expansion ports that make this magic happen. Each model, from the Delta 3 Plus to the Pro 3, uses different pin combinations. You must reference the pinout diagram for your specific unit. It's mandatory. Pin 4 and 5 or 6 are the targets depending on the hardware revision.

Connecting the Communication Bridge

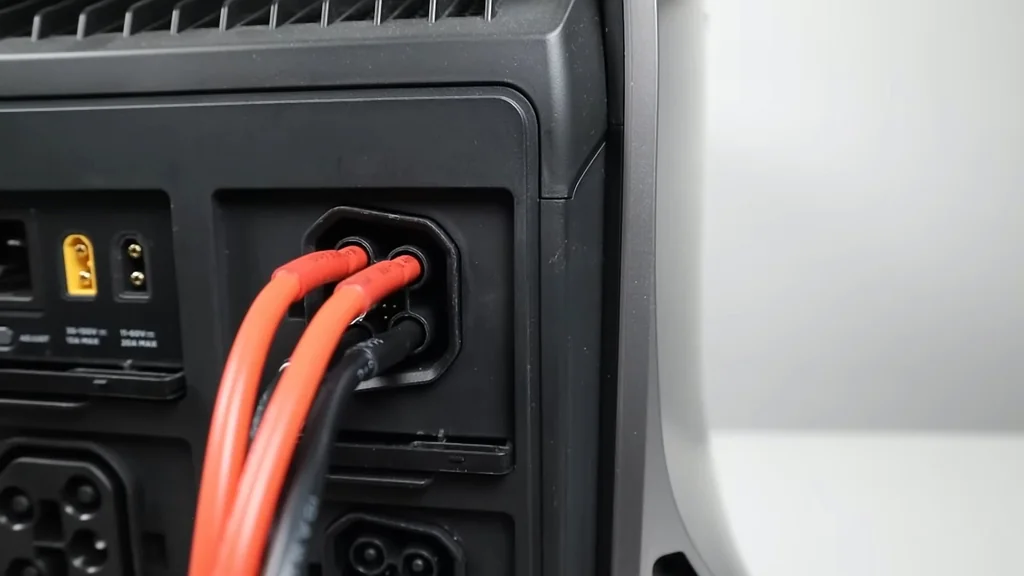

Insert the resistor-equipped leads into the designated pins. These pins handle the handshake between the battery and the station. It's delicate. Use butt connectors to ensure a tight, vibration-resistant fit. If the connection is loose, the station will drop the battery. It's annoying.

Monitoring Power Flow

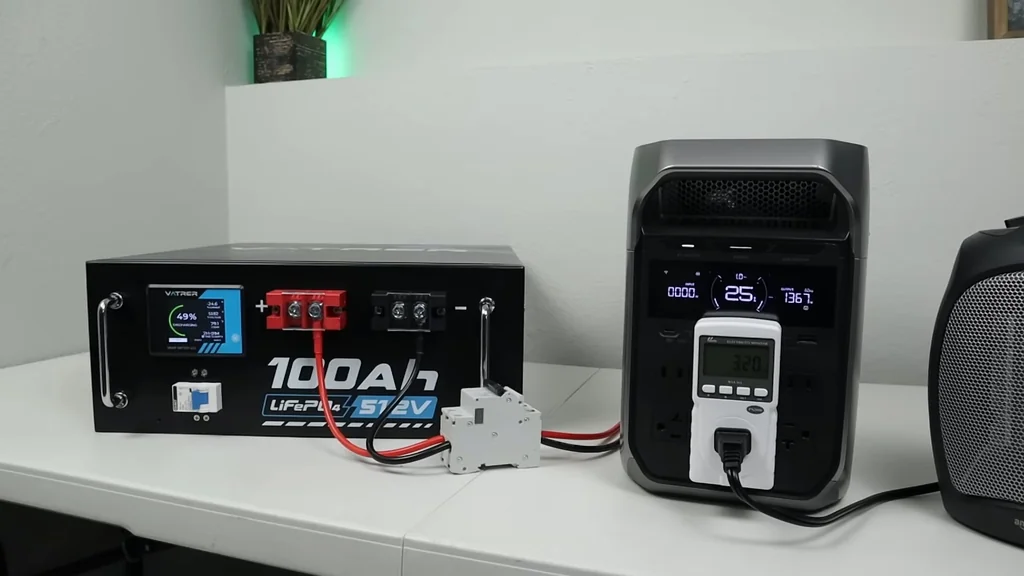

Once connected, the electricity monitor should show active power transfer. Watch the wattage climb as the station pulls from the external battery. It's working. If the numbers stay at zero, check your pin connections again. The handshake failed.

Verifying 560 Watt Discharge

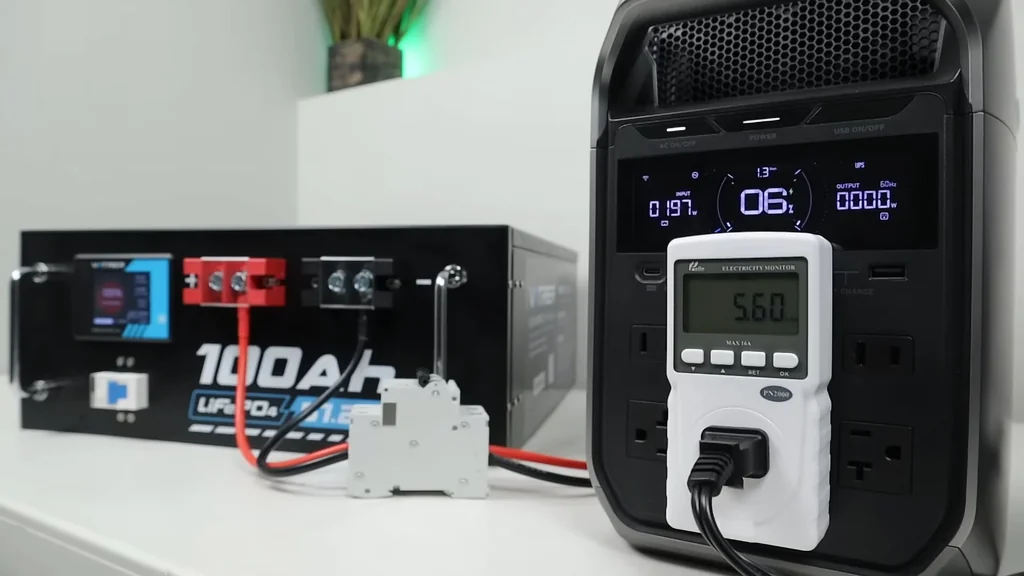

The monitor indicates a steady 560-watt draw from the external pack. This confirms the system is successfully utilizing the DIY battery. It's impressive. Keep an eye on the temperature of your connectors during this initial load test. They should remain cool.

Charging the Power Station

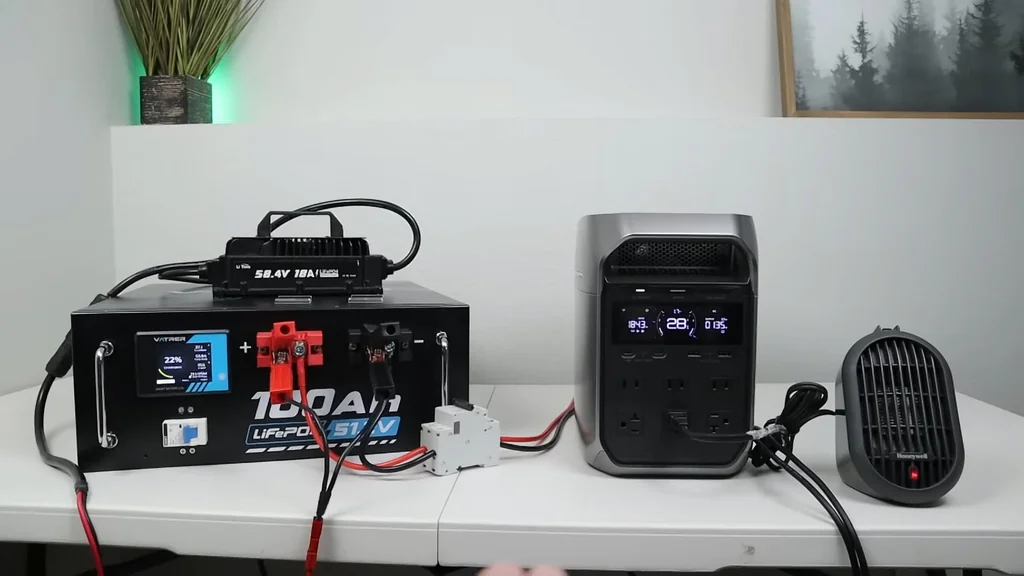

You can also use a dedicated 51.2V charger to top off the system. This setup creates a closed loop that keeps everything balanced. It's efficient. Ensure your charger settings match the LiFePO4 chemistry profile. Don't overcharge.

Simulating EV Charging Loads

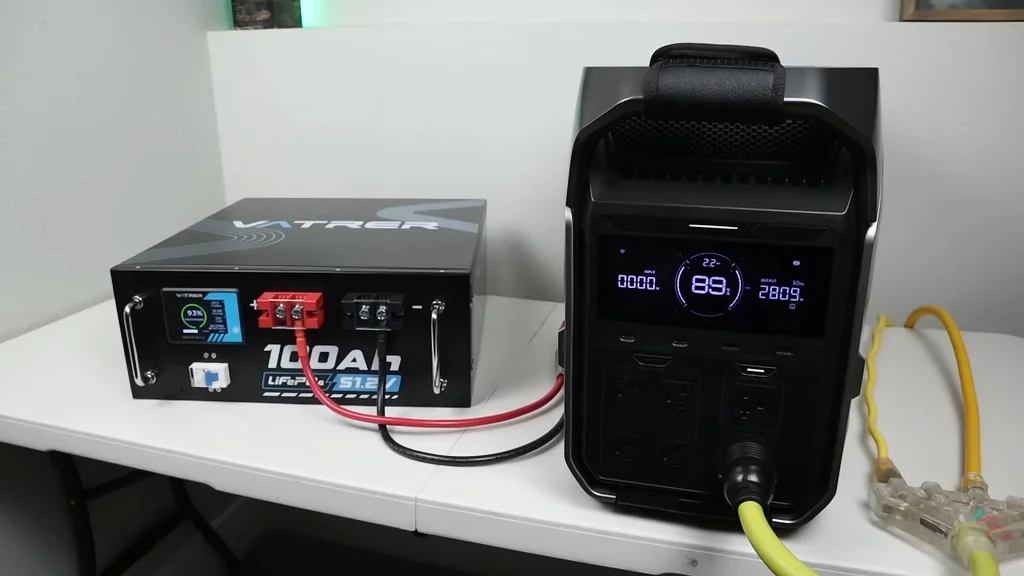

Push the system by simulating an EV charging load. This tests the limits of your DIY battery integration under high demand. It's intense. The EcoFlow manages the power distribution while drawing from the external source. It's stable.

Confirming Full Charge Status

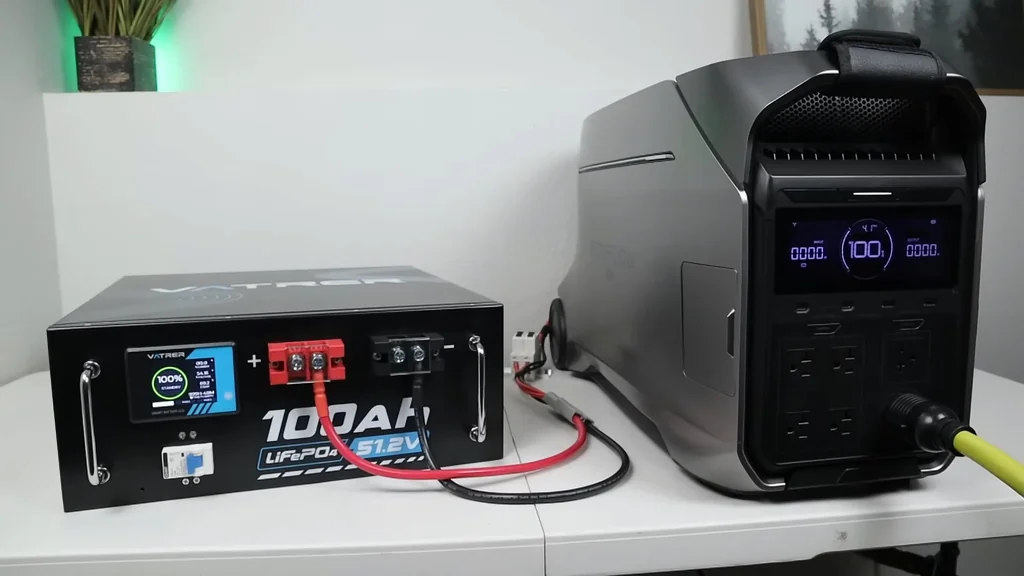

The station now reports a full charge status derived from the external battery. The integration is complete. It's successful. You've effectively bypassed the manufacturer's limitation. The system is ready.

Reviewing the Battery Setup

The man explains the nuances of the battery setup and why the resistor values are so important. It's about signal integrity. If the resistance is off, the communication fails. It's logical. Always double-check your resistor values.

Final System Observations

Wrapping up the project, we see the final configuration in action. The setup is clean and functional. It's reliable. This approach opens up massive possibilities for off-grid power storage. It's brilliant.

Summary & Tips

This DIY modification successfully unlocks the full potential of your EcoFlow power station. By using standard LiFePO4 batteries, you gain massive capacity without the proprietary price tag. The process requires careful attention to pinouts and circuit protection. It's a highly practical upgrade for any serious off-grid setup.
