SLA 3D Printing Explained: How Stereolithography Works

Stereolithography (SLA) is the industry standard for high-precision additive manufacturing. Unlike FDM printers that rely on melting plastic filament through a nozzle, SLA uses a controlled UV laser to solidify liquid photosensitive resin layer by layer. This process enables the creation of complex, high-detail parts for engineering, dental, and jewelry applications, offering a surface finish that is significantly smoother than traditional extrusion methods.

Step-by-Step Assembly, Repair, Testing & Inspection

The Fundamentals of SLA Printing

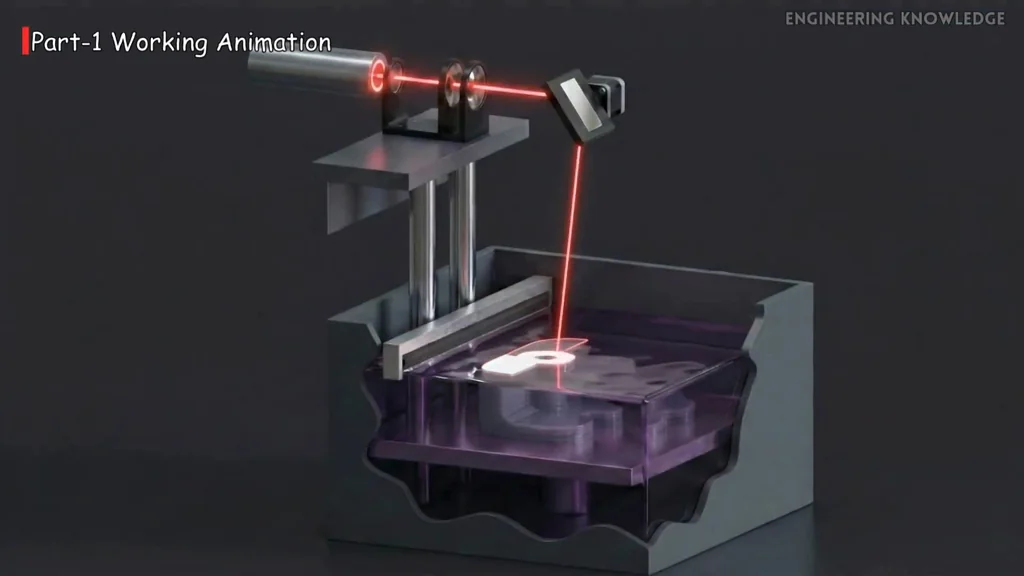

Stereolithography operates by using light to form solid objects from a liquid bath. There are no nozzles or filaments involved in this process. It's clean. The machine uses a transparent tank filled with liquid resin. A UV laser then traces patterns to build the object. It works without physical contact. The entire process is surprisingly precise.

Slicing and Resin Preparation

First, you load your CAD model into slicing software. The software divides the 3D object into thin horizontal layers. These layers act like slices of bread. Each slice tells the laser exactly where to move. The vat is filled with photosensitive polymer resin. This stuff reacts to UV light. It's a chemical change. The laser turns the liquid into solid plastic.

Laser Scanning and Solidification

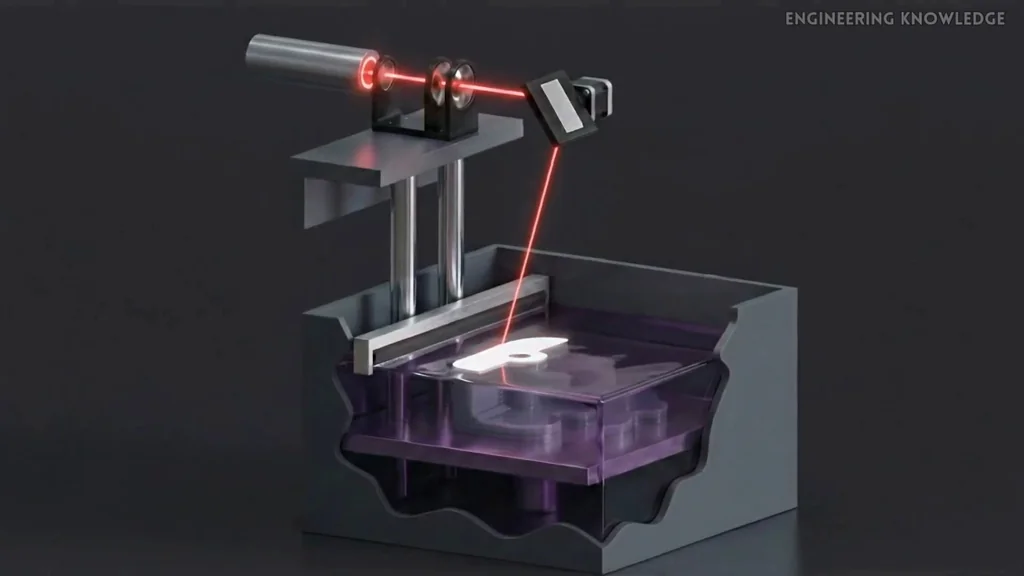

The UV laser source uses a system of mirrors and lenses to focus the beam. It traces the 2D pattern onto the surface of the resin. The laser receives commands from the software. It's precise work. Wherever the beam touches, a chemical reaction occurs. The resin becomes a solid polymer. The rest of the resin stays liquid. It's solid.

Surface Leveling and Blade Action

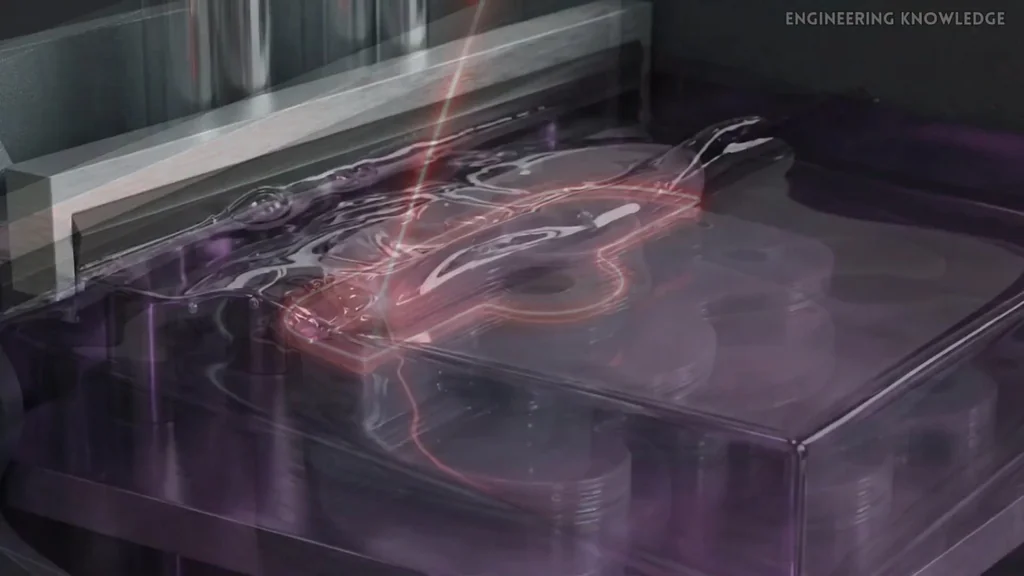

After a layer is formed, the surface might be slightly uneven. A leveling blade moves across the resin surface. It pushes the liquid resin like a wave. This leaves behind a perfectly flat, uniform layer. It's ready for the next step. The Z-axis motor then lowers the build platform. It moves by exactly one layer's thickness. This thickness is usually 0.05 to 0.07 mm. This is thinner than a human hair. The platform movement is critical.

Layer Bonding and Z-Axis Movement

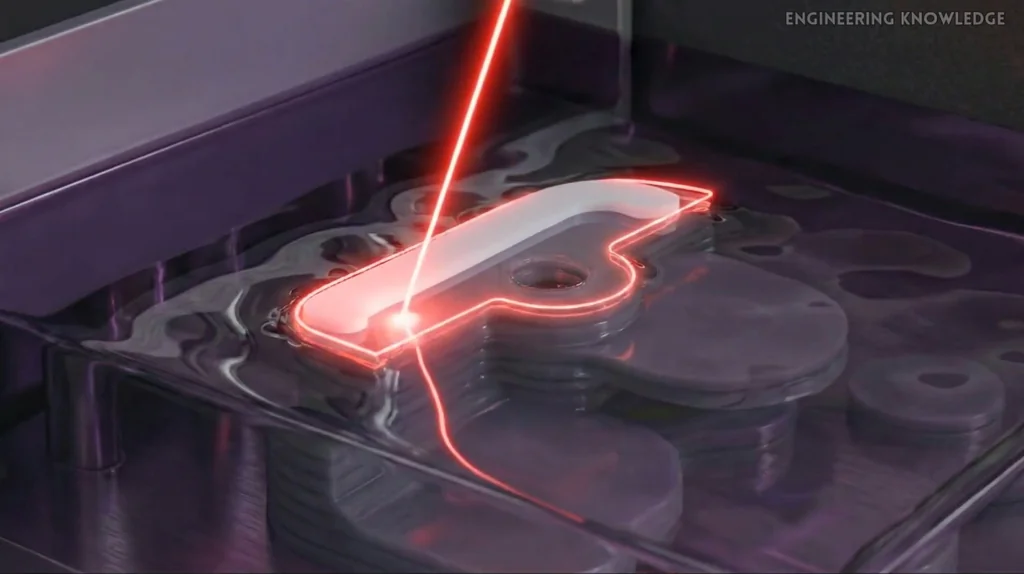

The platform moves down to allow fresh resin to flow over the previous layer. This happens automatically. The liquid flows over the surface to create a new, thin layer. Then the UV laser starts again. It traces the next 2D cross-section. The new resin solidifies and bonds to the layer below. It's a strong bond. The part grows height with every cycle.

The Printing Cycle Repeat

The cycle continues through hundreds or thousands of iterations. Follow, solidify, smooth, lower. Remember those four words. The model grows from the bottom up. Once the last layer is finished, the software stops the build. The Z-axis mechanism elevates the platform. The part emerges from the tank. It's finally done.

Post-Processing and Curing

The part stays above the vat to let excess resin drip back into the tank. Some uncured resin might still stick to the surface. You must rinse the part in a cleaning solution. Isopropyl alcohol works well. After cleaning, the part goes into a UV curing chamber. Extra UV light finishes the polymerization. It makes the material stronger. Supports are removed after this.

Exam Theory and Diagramming

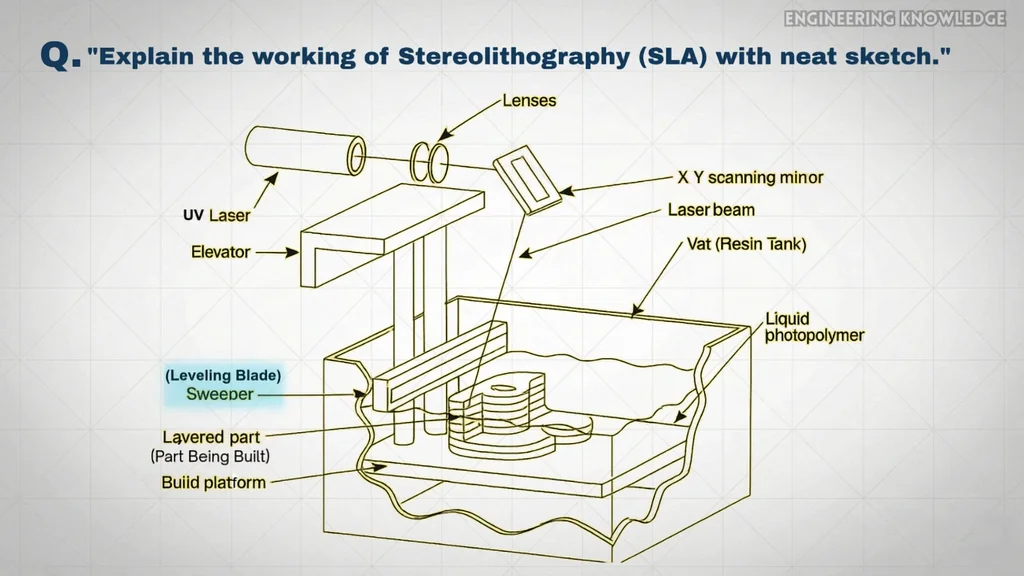

For engineering exams, you need to sketch the process clearly. Label the resin vat, liquid photopolymer, and build platform. Include the part being built and the UV laser. Don't forget the mirror or galvo and the leveling blade. It's a standard diagram. The written explanation should follow the six clear steps. Keep it simple.

The Six-Step Workflow Summary

First, CAD model and slicing. Second, resin vat and build platform setup. Third, laser scanning and solidification. Fourth, leveling blade action. Fifth, platform lowering for the next layer. Sixth, post-processing, including rinsing and UV curing. In the real world, SLA is used for accuracy. Dental models and jewelry patterns are common. It's high detail.

Final Process Recap

SLA uses liquid photosensitive resin. The UV laser traces the pattern. The resin solidifies. The blade smooths the surface. The platform lowers. The cycle repeats. It's a consistent process. That's how you get high-precision parts.

Summary & Tips

Stereolithography remains the gold standard for high-detail additive manufacturing. Mastering the four-step cycle of follow, solidify, smooth, and lower is key to successful prints. Proper post-processing with isopropyl alcohol and UV curing is non-negotiable for structural integrity. This technology continues to drive innovation in dental, jewelry, and engineering fields.
